Speedometer Widget
The Speedometer widget provides a gauge display for a numeric value.

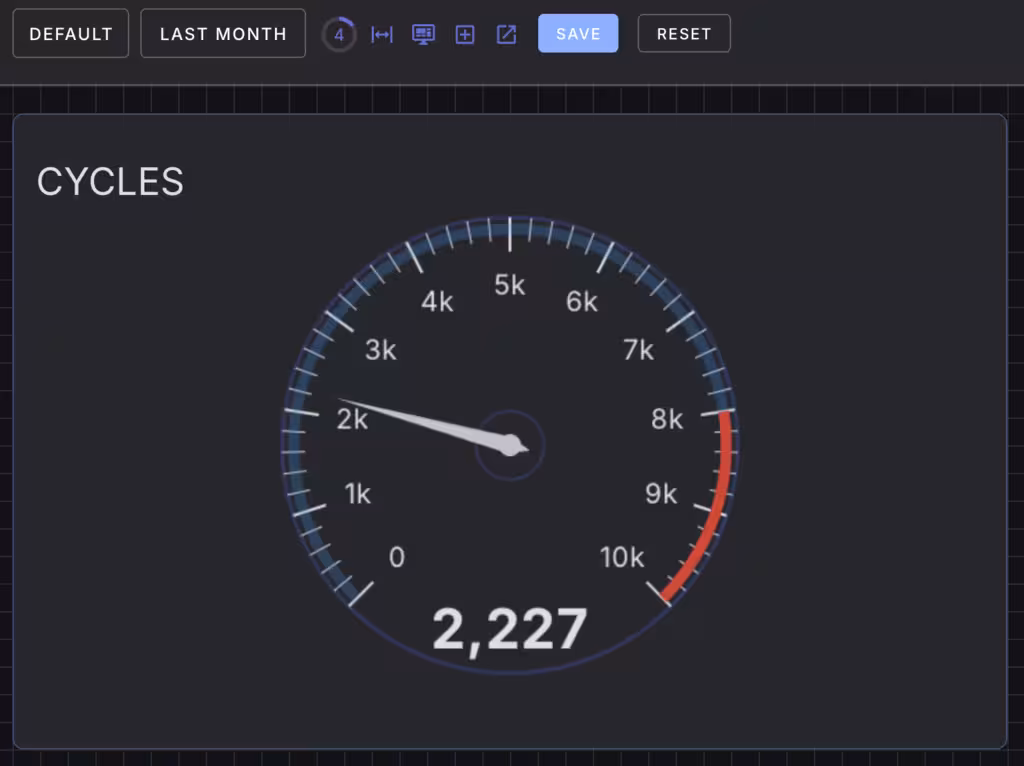

The speedometer displays a sweeping needle and background area with minimum and maximum values. A numeric reading is also displayed.
The speedometer widget animates the movement no the needle in response to large updates.
Configurable components
Name | Description |
---|---|
card | Background button card component |
primary | Button component |
Widget Properties
Class Name | Description |
---|---|
format | Format the value using a format string. Defaults to "{value}". |
min | Minimum value of the speedometer. Defaults to 0. |
max | Maximum value of the speedometer. Defaults to 100. |
value | Value to display on the speedometer. Defaults to 0. |
Common CSS Properties
These CSS properties configure the underlying button component.
Property | Description |
---|---|
background | Background color of the button |
color | Text color of the button |
--w-fill-color | The fill color of the speedometer arc (defaults to --v-theme-primary with opacity). |
--w-text-color | The color for text elements like value and labels (defaults to --v-theme-text). |
--w-needle-color | The color of the speedometer's needle (defaults to --v-theme-text-darken-1). |
--w-units | Optional units to display next to the value. |
